Description
Product details

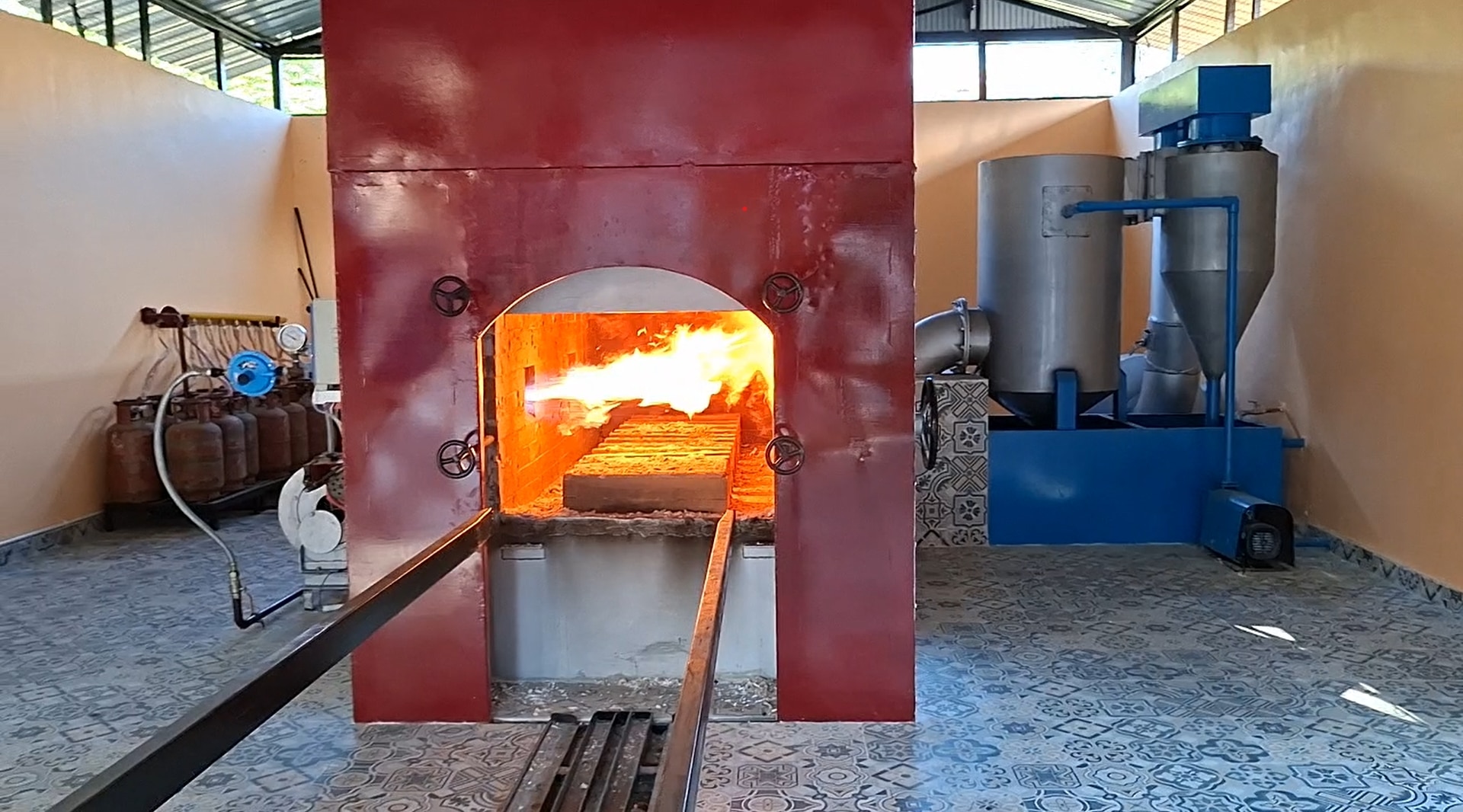

The LPG Gas crematorium is built with double chamber cremation furnace with a strong cremation bed and secondary air holes. Primary Chamber : Fully insulated internal refractory lining, constructed from high grade refractory brick (OSSPL Make) ensuring a self-supporting interlocked arrangement, hot hearth design. One hot hearth combustion burner (OSSPL Make), temperature controlled on-off, complete with internal air fans. One waste ignition burner (OSSPL Make), temperature controlled on-off, complete with internal air fans (OSSPL Make). One temperature control sensor Secondary Chamber : Fully insulated internal refractory lining, constructed from high grade low thermal mass insulation. One secondary chamber burnout burner (OSSPL Make), temperature controlled on-off, complete with internal air fans. 76mm refractory lined stack that reduces heat penetration under every condition, preventing the possibility of fire. Burners The Gas burners should be mounted at place of cremator facilitating access for comprehensive maintenance and repairs. Burners should configured for On/Off control, and should be ignited automatically and the burner system should be protected against flame failure, herby complying with the gas regulations. OSSPL Make [No. of Burner = 2] 600-900 ⁰C in Primary Chamber & 900-1200 ⁰C in Secondary Chamber 300mm Dia. X 6mm Thick X 20 Ft Length MS Pipe MS Cone 1000mm base Dia. X3000mm Height X10mm Thick 1200 mm X 1200 mm X 16mm Thick Bottom Flange Flanges 310mm (I.D.) X 25mm Thick 22mm Dia. Half Thread High Tension Nut/Bolts with one spring washer and two plain washers. Earthing, Red Light Flasher Foundation Bolts/Nuts 35mm Dia. X 1500mm Long Steel Core Wire Rope 10mm Dia.
